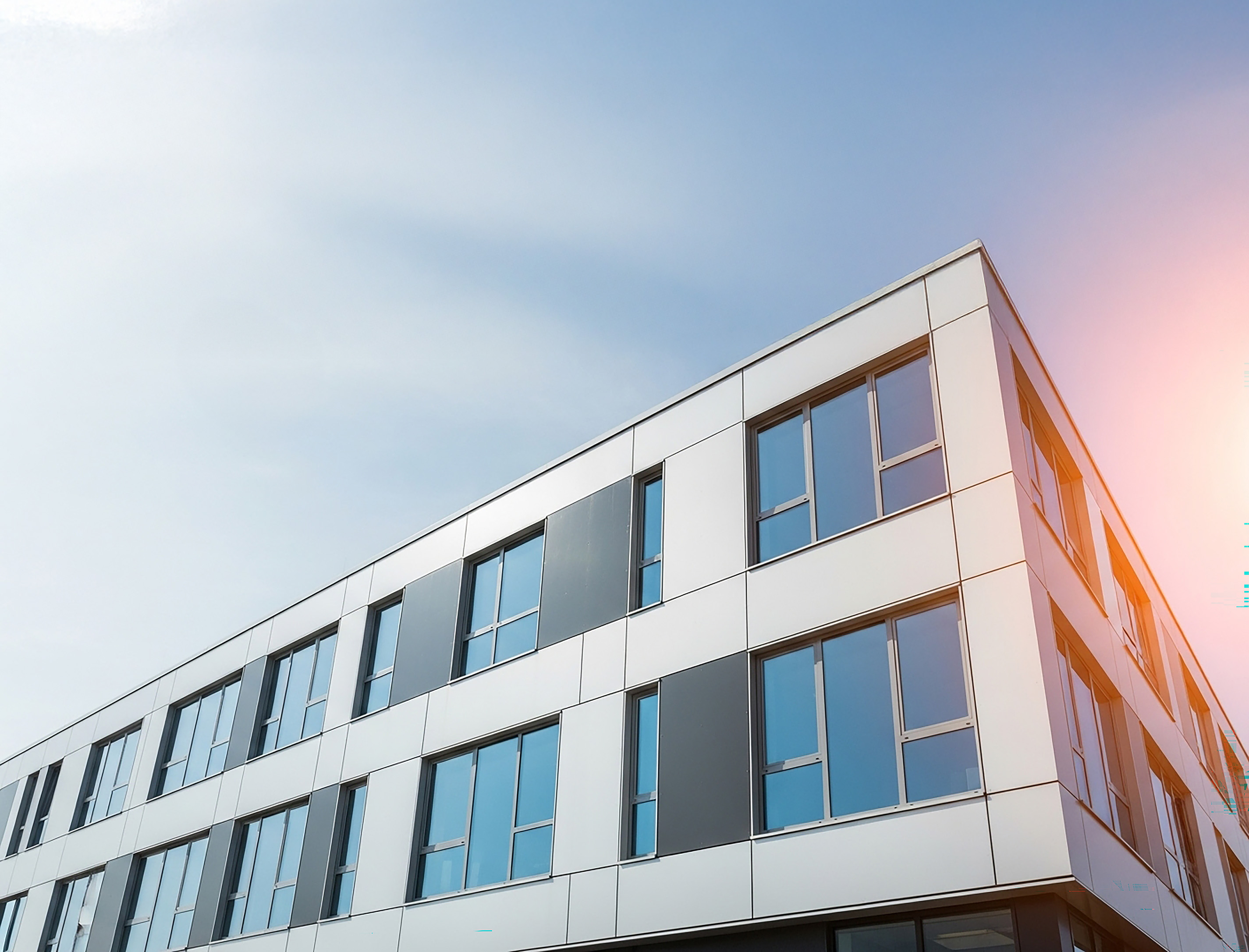

Millimeter-Level Accuracy for ACM Panel Systems

Behind every scan is a team dedicated to doing what is right and doing it well, delivering quality you can trust-every project, every time. We invite you to experience the difference with us today!gestas aliquam.

A workplace culture shaped by initiative, passion, and integrity.

Personal and professional growth built on mutual respect and trust.

A healthy work-life balance that helps us attract and retain the best.

Why Accuracy Matters

Why ACM Systems Depend on Precise Field Measurements

ACM panel systems require millimeter-level accuracy for proper alignment and long-term performance. Field conditions rarely match design documents, and even small variations in framing or substrate can lead to fabrication errors and costly rework. Nederveld captures verified as-built conditions before fabrication begins, providing clean and reliable dimensional data that ensures panels and extrusions fit the actual structure. You'll find the same approach in everything we do: relentless dedication, respect, honesty, and accountability drive every step of our process, ensuring exceptional results and lasting relationships.

Get a Free Estimate Today!

At Nederveld, we’re always looking for passionate individuals who lead with initiative and uphold integrity in all they do. In return, we offer an environment focused on both personal and professional growth—built on a foundation of mutual respect and a commitment to excellence.

Apply now
What we deliver

Accurate, Fabrication-Ready Measurement Data

Our Reality Capture workflow produces unified, model-ready data that integrates directly into panel fabrication. By combining cutting-edge technology with integrity-driven service, we deliver results that consistently exceed expectations.

On-Site Scanning

  • Leica RTC360 and P-Series scanners
  • Millions of points captured per second
  • Records framing, substrate, openings, parapets, reveals, fastener lines, and anchorage points
  • Scanning before demolition, during framing, or post-installation for verification

Data Processing

  • Point clouds registered in Cyclone Register360 or Cyclone Core
  • Aligned to project coordinate systems or architectural datums
  • Clean, unified datasets ready for modeling, fabrication, or QA/QC

Modeling & Deliverables

  • 2D shop drawing underlays (DWG, DXF)
  • 3D surface or mesh models (RVT, STEP, IFC)
  • Deviation heatmaps
  • Edge-to-edge and anchor-to-anchor fabrication measurements

A workplace culture shaped by initiative, passion, and integrity.

Personal and professional growth built on mutual respect and trust.

A healthy work-life balance that helps us attract and retain the best.

Accuracy You Can Trust

Trusted Measurement Standards

Behind every scan is a team of experts whose knowledge and commitment ensure precision and peace of mind for our clients. We provide reliable data that reduces fabrication errors and helps ensure first-time-fit results.

Typical field tolerance: ±2mm over large facade areas

Leica RTC360 and P-Series high-accuracy LiDAR

Processing aligned with ASTM E57 and USIBD LOA20-30 standards

Get a Free Estimate Today!

At Nederveld, we’re always looking for passionate individuals who lead with initiative and uphold integrity in all they do. In return, we offer an environment focused on both personal and professional growth—built on a foundation of mutual respect and a commitment to excellence.

Apply now
Ideal Use Cases

Where Reality Capture Adds Value

Collaboration and accountability create the foundation for exceptional outcomes-that's what we bring to every project. Our laser scanning services support ACM panel projects at every stage, reducing risk, improving alignment, and ensuring panels are fabricated to verified field conditions.

  • Existing building retrofits and reclads
  • Extrusion and fit checks
  • Panels fabricated from verified digital dimensions
  • Dimension verification before fabricating new panels
  • Shop drawing dimensional validation
  • Fewer site visits and reduced rework
  • Prefabricated wall system and curtain wall coordination
  • Post-installation QA/QC documentation
  • Fast turnaround after scanning

Our Expertise

Nederveld combines advanced 3D laser scanning, LiDAR, and decades of surveying experience to deliver precise, dependable as-built data. Our Reality Capture services turn complex site conditions into detailed point clouds, 3D BIM models, and fabrication-ready CAD files, supported by strong survey control and refined workflows to ensure accuracy and clarity.
Since 1977, we have remained committed to serving others with respect and integrity, providing clear communication, reliable support, and a dependable experience from the first conversation through final delivery.
Get a Free Estimate Today!
