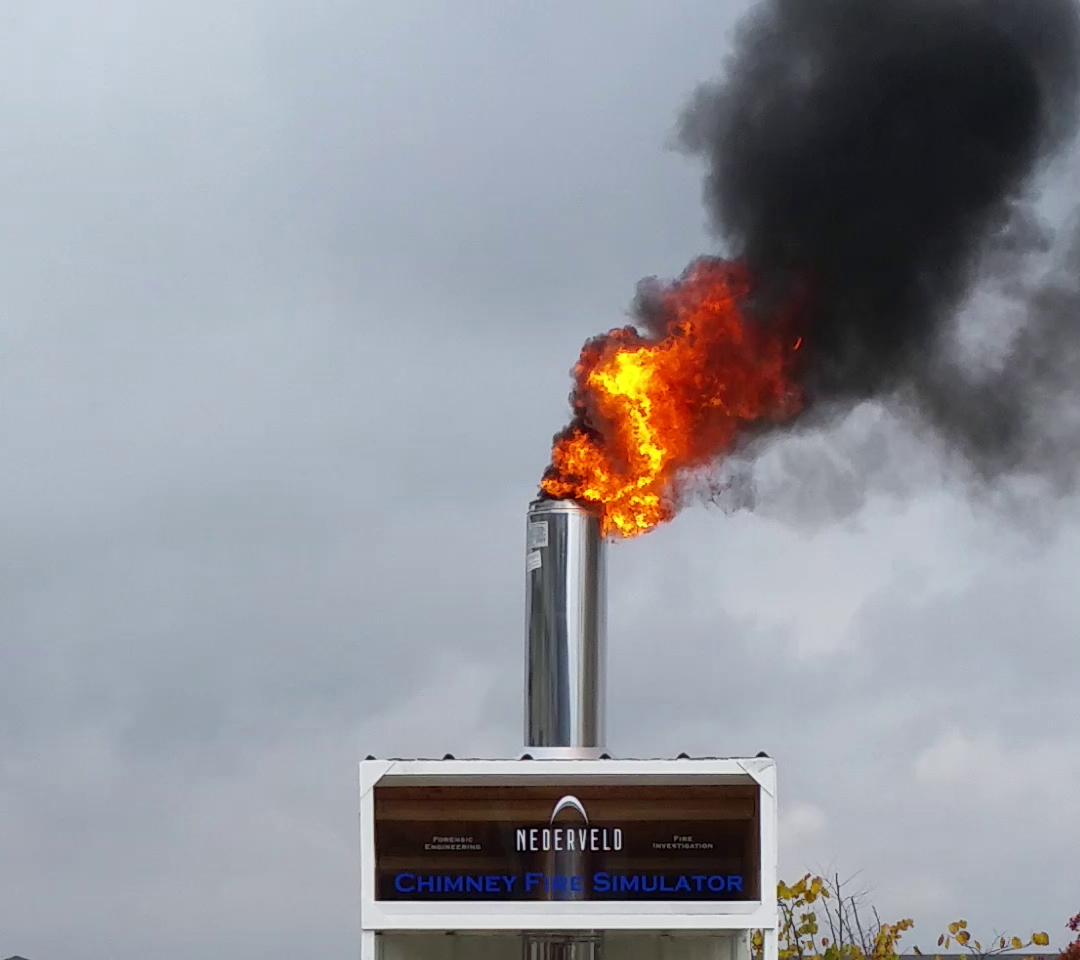

Use our checklist each time you look at a chimney fire!
Why accuracy matters

Why ACM Systems Depend on Precise Field Measurements

Can you tell when the loss was actually from a chimney fire or when something else was going on? Do you know that not all chimney fires cause damage? When you’re not sure if you’re looking at a chimney fire, structural issues, or something else, turn to our FREE Chimney Fire Checklist for helpful information.

Get the Checklist Now
What we deliver

Accurate, Fabrication-Ready Measurement Data

Our Reality Capture workflow produces unified, model-ready data that integrates directly into panel fabrication.

On-Site Scanning

  • Leica RTC360 and P-Series scanners
  • Millions of points captured per second
  • Records framing, substrate, openings, parapets, reveals, fastener lines, and anchorage points
  • Scanning before demolition, during framing, or post-installation for verification

Data Processing

  • Point clouds registered in Cyclone Register360 or Cyclone Core
  • Aligned to project coordinate systems or architectural datums
  • Clean, unified datasets ready for modeling, fabrication, or QA/QC

Modeling & Deliverables

  • 2D shop drawing underlays (DWG, DXF)
  • 3D surface or mesh models (RVT, STEP, IFC)
  • Deviation heatmaps
  • Edge-to-edge and anchor-to-anchor fabrication measurements

Our Reality Capture workflow produces unified, model-ready data that integrates directly into panel fabrication. By combining cutting-edge technology with integrity-driven service, we deliver results that consistently exceed expectations.

Accuracy You Can Trust

Chimney Fire Season is Here!

  • Typical field tolerance: ±2mm over large facade areas
  • Leica RTC360 and P-Series high-accuracy LiDAR
  • Processing aligned with ASTM E57 and USIBD LOA20–30 standards
Behind every scan is a team of experts whose knowledge and commitment ensure precision and peace of mind for our clients. We provide reliable data that reduces fabrication errors and helps ensure first-time-fit results.
Get the Checklist Now
Ideal Use Cases

Where Reality Capture Adds Value

Collaboration and accountability create the foundation for exceptional outcomes—that’s what we bring to every project. Our laser scanning services support ACM panel projects at every stage, reducing risk, improving alignment, and ensuring panels are fabricated to verified field conditions.

  • - Existing building retrofits and reclads
  • - Extrusion and fit checks
  • - Panels fabricated from verified digital dimensions
  • - Dimension verification before fabricating new panels
  • - Shop drawing dimensional validation
  • - Fewer site visits and reduced rework
  • - Prefabricated wall system and curtain wall coordination
  • - Post-installation QA/QC documentation
  • - Fast turnaround after scanning

Our Expertise

With 20+ years of national expertise and licensed in all 48 contiguous states, we provide reliable, objective, and cost effective analysis you can count on. From the time the assignment comes in, there are people helping you, walking you through the process, and having a continual conversation to determine what's best for your situation. We will do the work to find the answers. In fact, we will help you find the right questions.
Get the Checklist Now

Our Promise

  • Intentional Communication
  • Reliable Service
  • Justifiable Conclusions

Your Praise

“Your demonstrator was very good at communicating the facts of this seminar, I felt that I was in the hands of a true professional.”
- Satisfied Client
“I was blown away by the service that I received at every interaction with Nederveld. From the first contact to scheduling, and the inspection; I am very impressed. Nederveld will now be my first choice for engineer's inspection.”
- Satisfied Client
“Complete satisfaction as usual. Excellent job of communicating, promptness, and reporting.”
- Satisfied Client
